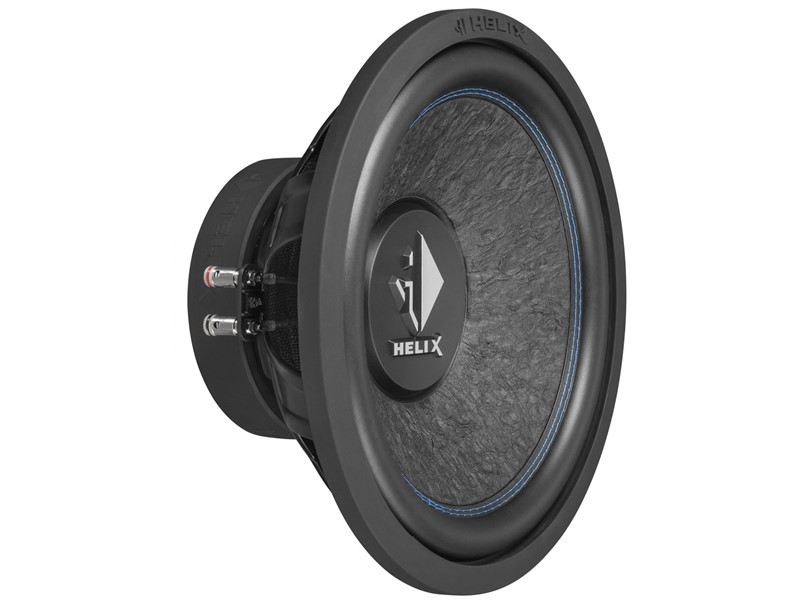

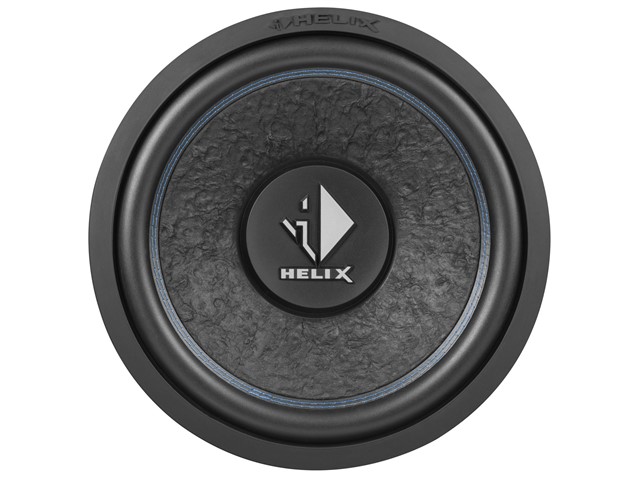

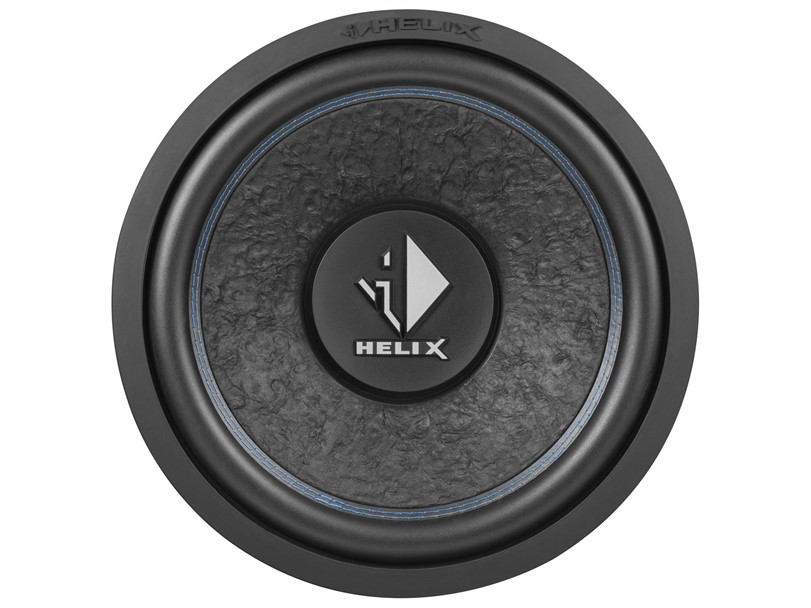

Helix K 12W
12" (30cm) Subwoofer
K331200
SPAR 0%
Helix K 12W
12" (30cm) Subwoofer
- Prismatch på alle mærker
- Gratis fragt ved køb over 899,-
- 30 dages fuld returret og 2 års garanti
- Trustpilot-score: FREMRAGENDE
- Besøg vores butik i Odense her
1299 DKK
1.299,-
PR. STK
inkl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- Prismatch på alle mærker
- Gratis fragt ved køb over 899,-
- 30 dages fuld returret og 2 års garanti
- Trustpilot-score: FREMRAGENDE
- Besøg vores butik i Odense her
x
Nærmere beskrivelse på dansk følger snarest...
Do-it-yourselfers, here's your chance to create your personal sub that perfectly fits into your car!
From the technical point of view the two drivers K 10W and K12W are absolutely identical with the subwoofers that are installed in the K series enclosure subs.
Just have a look at the Thiele/Small parameters and you will easily notice that those are designed for compact vented cabinets yet leaving plenty of "headroom" for designing your own preferred sound characteristic. If you prefer to play it safe, just choose the same net volume and port tuning frequency like our enclosure subs K 10E and K 12E for outstanding bass performance.
So what are you waiting for? Start your "tailor-made subwoofer project" right now!
Features
Extremely stiff, hand-scooped paper cone
Double ventilated voice coil for minimum compression effects and high power handling
Long-excursion rubber surround for highest mechanical rating
Very long linear excursion
2 x 2 Ohms dual voice coil for flexible system configuration
Solid push terminals
Powerful magnet system for compact vented enclosures
Rugged magnet cover with HELIX lettering for perfect magnet protection
Grille and gasket included in delivery
Technical data
Power RMS / max. P 300 / 600 Watt
Impedance Z 2 x 2 Ω
DC resistance Re 2 x 1.6 Ω
Resonance frequency Fs 32 Hz
Mechanical Q factor Qms 3.70
Electrical Q factor Qes 0.46
Total Q factor Qts 0.41
Compliance Cms 179 μm/N
Equivalent air volume Vas 66 L
Force factor B*I 13.7 Tm
Efficiency 1 W / 1 m SPL 90.0 dB
Cone area Sd 515 cm²
Moving mass Mms 134 g
Cone material Hand-scooped paper cone
Mechanical resistance Rms 7.33 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height 24 mm
Max. linear excursion Xmax +/- 8.0 mm
Outer diameter ø 316 mm / 12.44"
Installation diameter ø 286 mm / 11.26
Installation depth 144 mm / 5.67"
Recommended enclosure volumes
Sealed box
Net volume 18 L
Lower limiting frequency (-3dB) 49 Hz
Vented box
Net volume 30 L
Port diameter ø 100 mm / 3.94"
Port area 78 cm²
Port length 28 cm / 9.84"
Port tuning frequency Fb 39 Hz
Lower limiting frequency (-3dB) 39 Hz
Scope of delivery
1 x Subwoofer HELIX K 12W

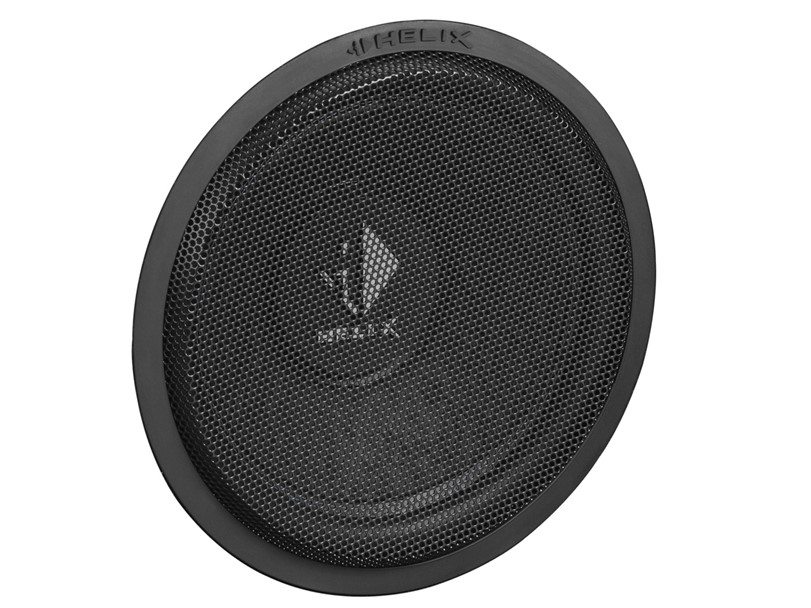

1x Grille
1 x Gasket
1 x Data sheet
